  GSSA - GENERAL SALES AND SERVICES AGENT


Aircrafts: various aircrafts type carrying either pax and cargo or cargo only



Aicraft pic

Type and average capacity with full pax

Loading doors dims. or type

Airbus A320
narrow body

Max Weight: 2400 Kg.
Volume: 13 CBM

Belly door dimensions:
140 x 110 cms.
or
LD3 containers
type AKH / DKH

Airbus A321
narrow body

Max Weight: 2600 Kg.
Volume: 14 CBM

Belly door dimensions:
140 x 110 cms.
or
LD3 containers
type AKH / DKH

Airbus A310
wide body

Max Weight: 10000 Kg.
Volume: 40 CBM

Pallets & Containers

Lower deck Pallets 88x125" ( 64" h)
and / or LD3 - LD6/7 containers

Airbus A330
wide body

Max Weight: 15000 Kg.
Volume: 90 CBM

Pallets & Containers

Lower deck ( 64" h) Pallets
88x125" and/or 96x125"
and / or LD3 - LD6/7 containers

Airbus A340
wide body

Max Weight: 18000 Kg.
Volume: 90 CBM

Pallets & Containers

Lower deck ( 64" h) Pallets
88x125" and/or 96x125"
and / or LD3 - LD6/7 containers

Boeing B737
narrow body

Max Weight: 2200 Kg.
Volume: 17 CBM

Belly doors dimensions:

122 x 86 cms. (h)

Boeing B757
narrow body

Max Weight: 4000 Kg.
Volume: 28 CBM

Belly doors dimensions:

140 x 108 cms (h)

Boeing B767
wide body

Max Weight: 14000 Kg.
Volume: 60 CBM

Pallets & Containers

Lower deck ( 64" h) Pallets
88x125" and/or 96x125"
and / or LD3 - LD6/7 containers

Boeing B777
wide body

Max Weight: 17000 Kg.
Volume: 60 CBM

Pallets & Containers

Lower deck ( 64" h) Pallets
88x125" and/or 96x125"
and / or LD3 - LD6/7 containers

Boeing B747
wide body

Max Weight: 26000 Kg.
Volume: 60 CBM

Pallets & Containers

Lower deck ( 64" h) Pallets
88x125" and/or 96x125"
and / or LD3 - LD6/7 containers

Boeing B747 Combi
wide body

Max Weight: 40000 Kg.
Volume: 110 CBM

Pallets & Containers

Lower deck ( 64" h) Pallets
88x125" and/or 96x125"
and / or LD3 - LD6/7 containers

Main deck (118" h) Pallets
88x125" and/or 96x125"
and/or M1-M6 containers
P7/A-P7/E-PGA platforms

Airbus A330 cargo
full freighter

Max Weight: 65000 Kg.
Volume: 430 CBM

Pallets & Containers

Lower deck ( 64" h) Pallets
88x125" and/or 96x125"
and / or LD3 - LD6/7 containers

Main deck (118" h) Pallets and containers
88x125" and/or 96x125"

Boeing B767 cargo
full freighter

Max Weight: 56000 Kg.
Volume: 420 CBM

Pallets & Containers

Lower deck ( 64" h) Pallets
88x125" and/or 96x125"
and / or LD3 - LD6/7 containers

Main deck (118" h) Pallets and containers
88x125" and/or 96x125"

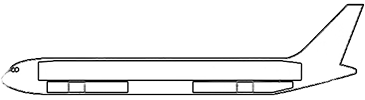

Boeing B777 cargo
full freighter

Max Weight: 102000 Kg.
Volume: 600 CBM

Pallets & Containers

Lower deck ( 64" h) Pallets
88x125" and/or 96x125"
and / or LD3 - LD6/7 containers

Main deck (118" h) Pallets and containers
88x125" and/or 96x125"

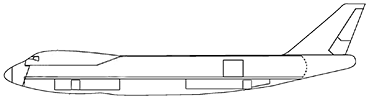

Boeing B747 cargo
full freighter

Max Weight: 110000 Kg.
Volume: 700 CBM

Pallets & Containers

Lower deck ( 64" h) Pallets
88x125" and/or 96x125"
and / or LD3 - LD6/7 containers

Main deck (118" h) Pallets
88x125" and/or 96x125"
and/or M1-M6 containers
P7/A-P7/E-PGA platforms

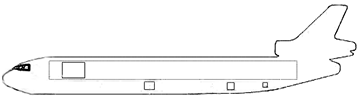

McDonnel MD11 cargo
full freighter

Max Weight: 90000 Kg.
Volume: 540 CBM

Pallets & Containers

Lower deck ( 64" h) Pallets
88x125" and/or 96x125"
and / or LD3 - LD6/7 containers

Main deck (118" h) Pallets and containers
88x125" and/or 96x125"

Aircrafts data to be used as pure refernce only
